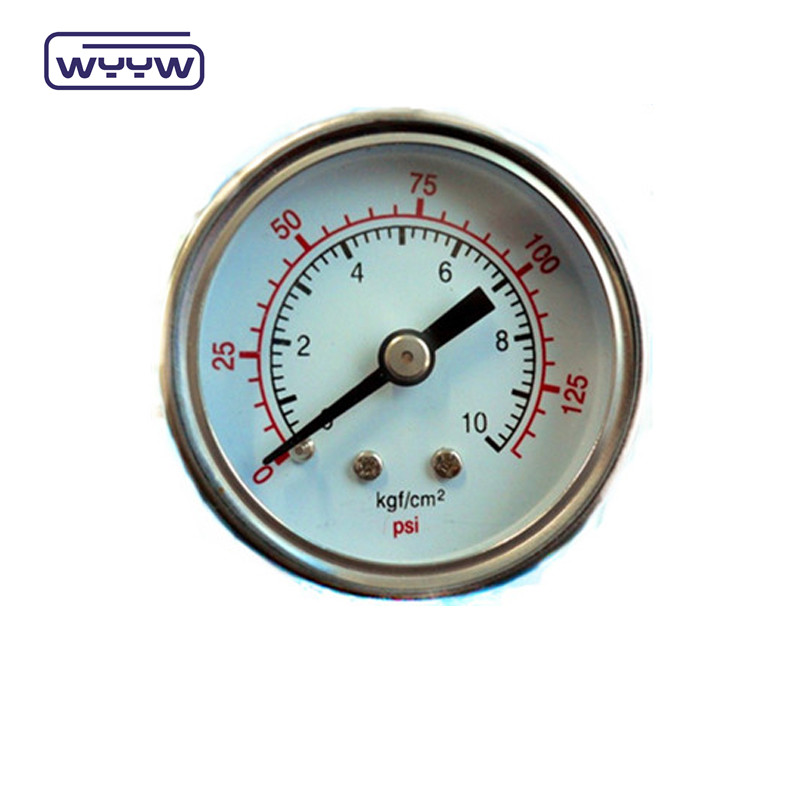

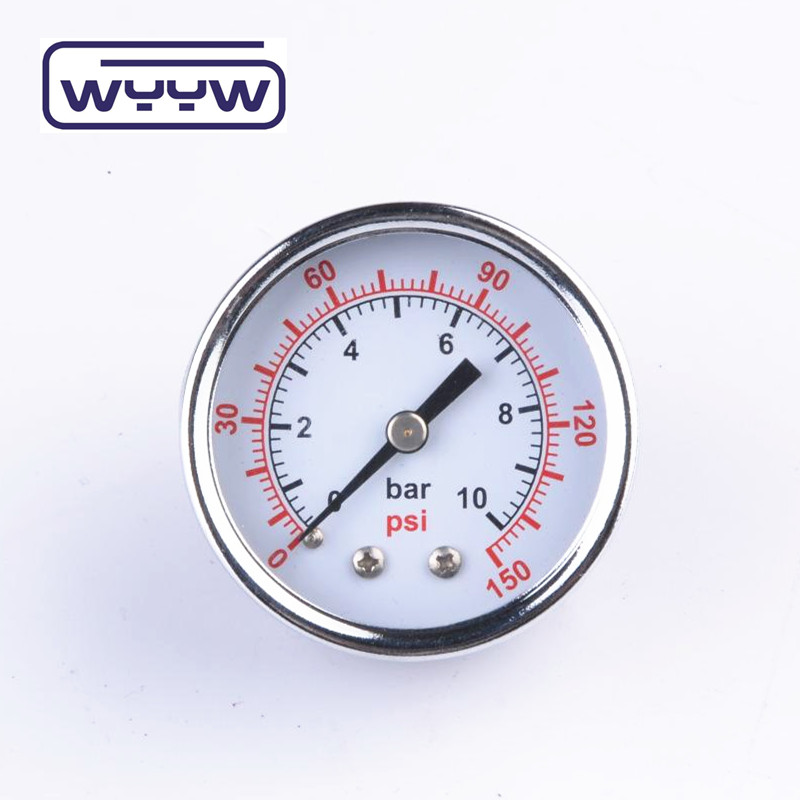

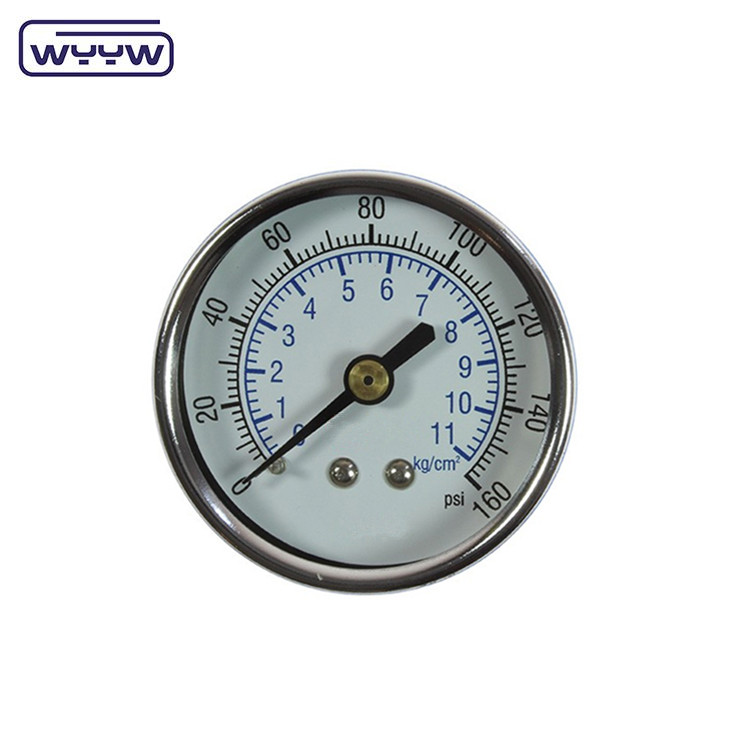

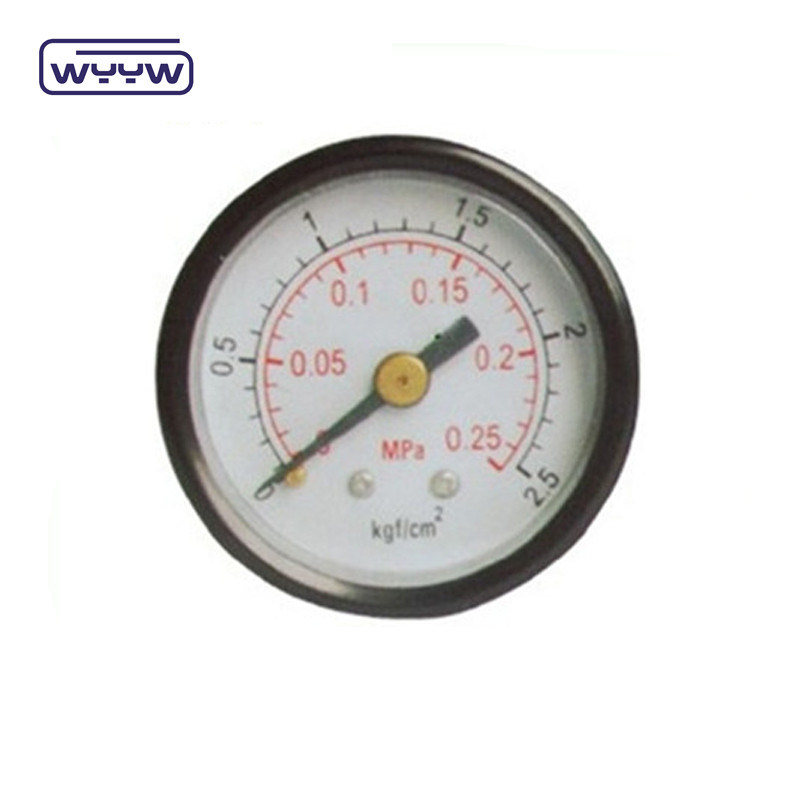

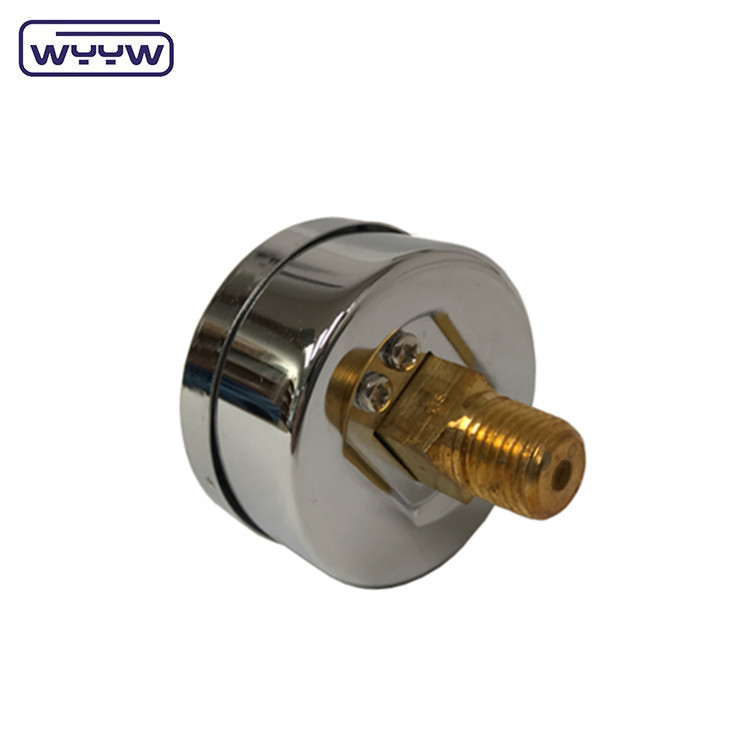

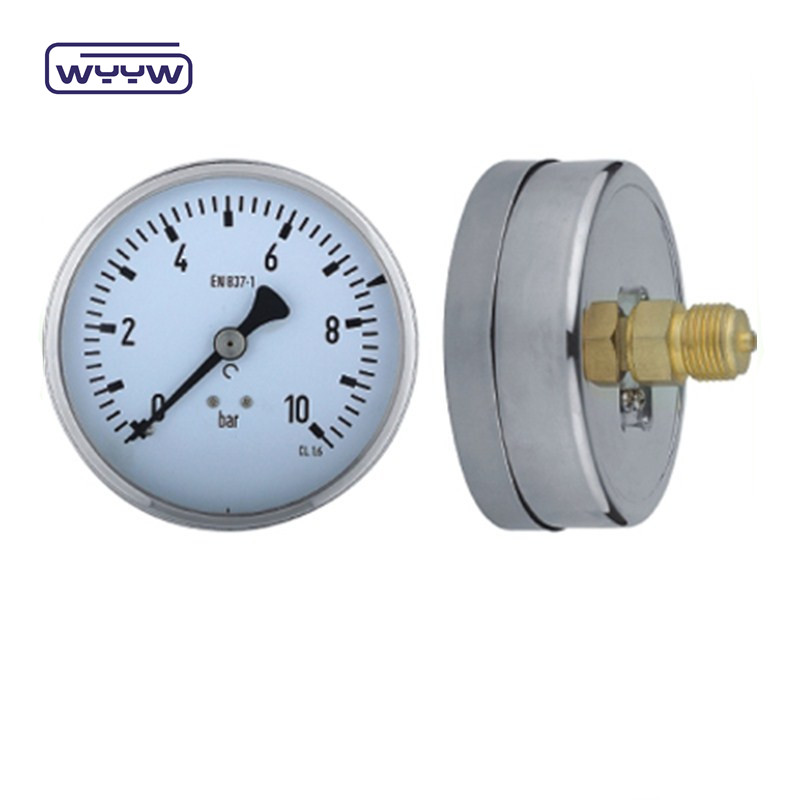

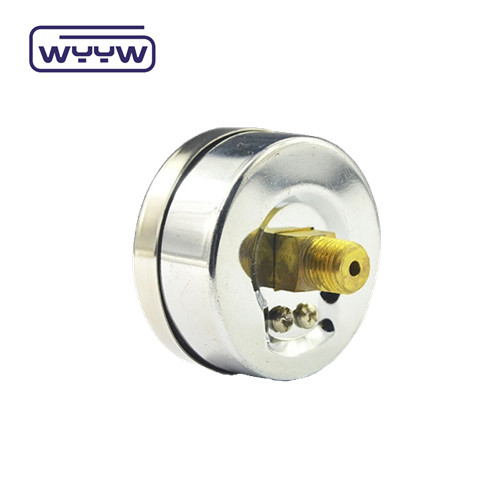

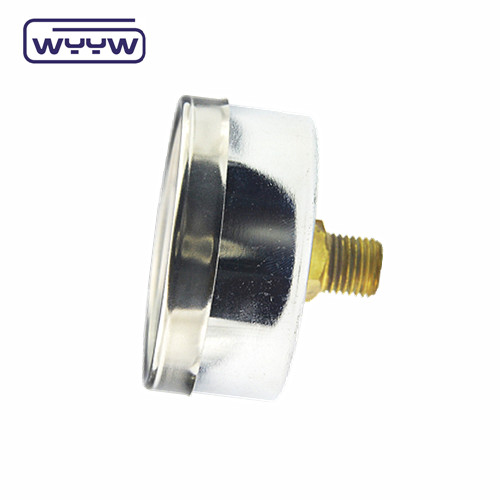

Back mounting SS Case Pressure gauge

Dry Stainless Steel Pressure Gauge
Main Technique Data
不锈钢压力表	Dials Size	2"(50mm), 2.5(63mm), 4(100mm) and 6 (150mm)
	Case	SS304
	Pressure range	0 -100MPa, other scale units bar, psi, kg/cm2 etc.optional
	Ring	Stainless steel (roll ring or bayonet type)
	Movement	SS304,SS316(brass optional)
	Socket	SS304, SS316(brass optional)
	Bourdon tube	SS304, SS316(brass optional)
	Dial plate and pointer	Aluminum
	Window	Glass, safe glass
	Connection sizes	1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
	Connection threads	Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)

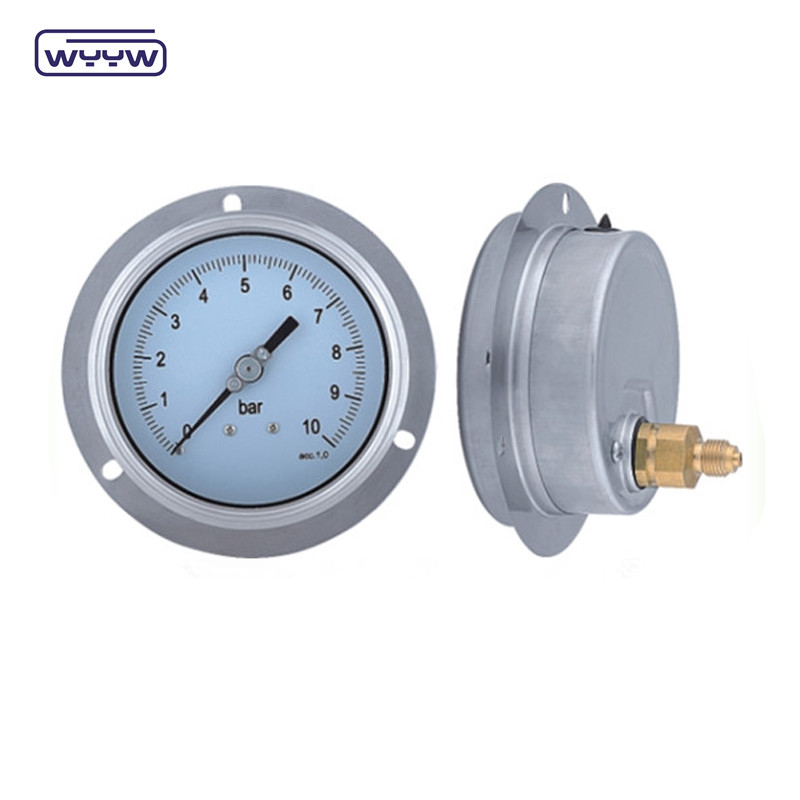

	Mounting	Bottom,back and panel
	Accuracy	2"(50mm), 2.5(63mm)-2.5% 4(100mm) and 6 (150mm)-1.6%
	Pressure limitation	Steady: 3/4x full scale value Fluctuation:2/3x full sacle value Short time:full scale value
