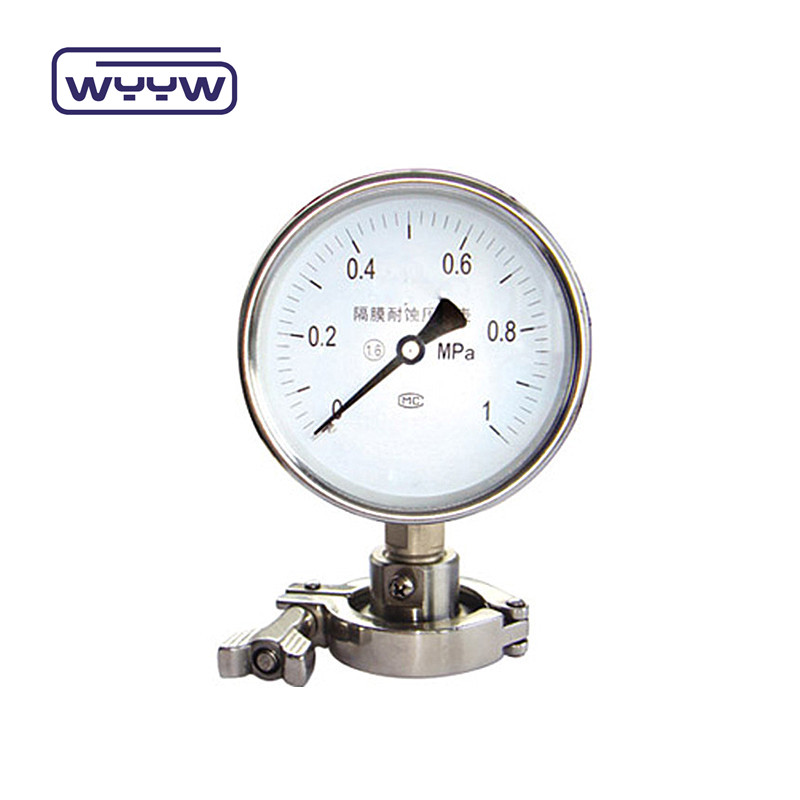

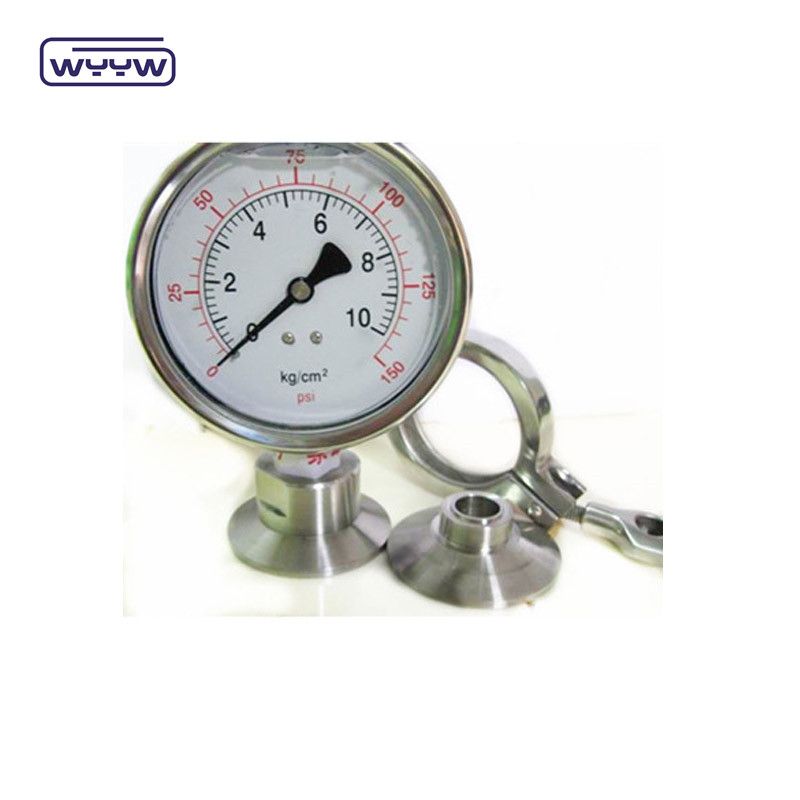

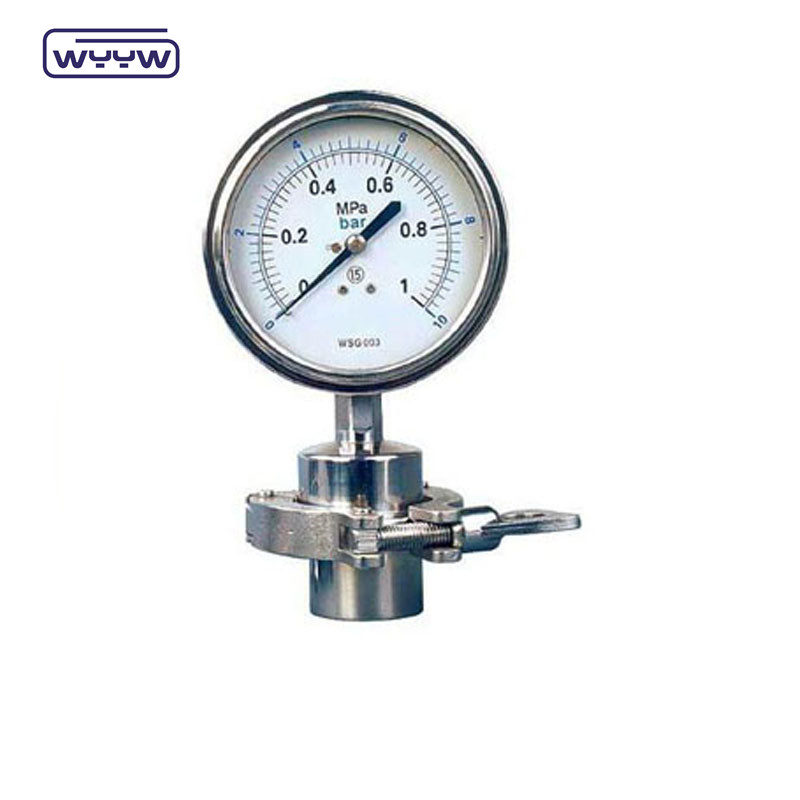

Diaphragm seal pressure gauge MC

		Diaphragm Pressure Gauge
Main Technique Data
隔膜压力表	Dials Size	2.5(63mm), 4(100mm) and 6 (150mm)
	Case	Black steel or SS
	Pressure range	0.1MPa～10MPa, other scale units avaiable
	Ring	Non, roll and bayonet type
	Movement	Brass, SS
	Socket	Brass, SS
	Bourdon tube	Phosphor Bronze, SS
	Diaphragm	SS316
	Flange	SS316,SS304
	Dial plate and pointer	Aluminum
	Window	Glass, Safe Glass
	Connection sizes	1/4 for 2.5" case, 3/8"&1/2" for 4",6"case
	Connection threads	Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
	Flange Type	open flange, I-beam flange, with angle type flange, clamp type flange
	Liquid	dry, silicone or glycerine filled
	Mounting	bottom with connection or with flange
	Accuracy	2.5(63mm)-2.5% 4(100mm) and 6 (150mm)-1.6%
	Pressure limitation	Steady: 3/4x full scale value Fluctuation:2/3x full sacle value Short time:full scale value
