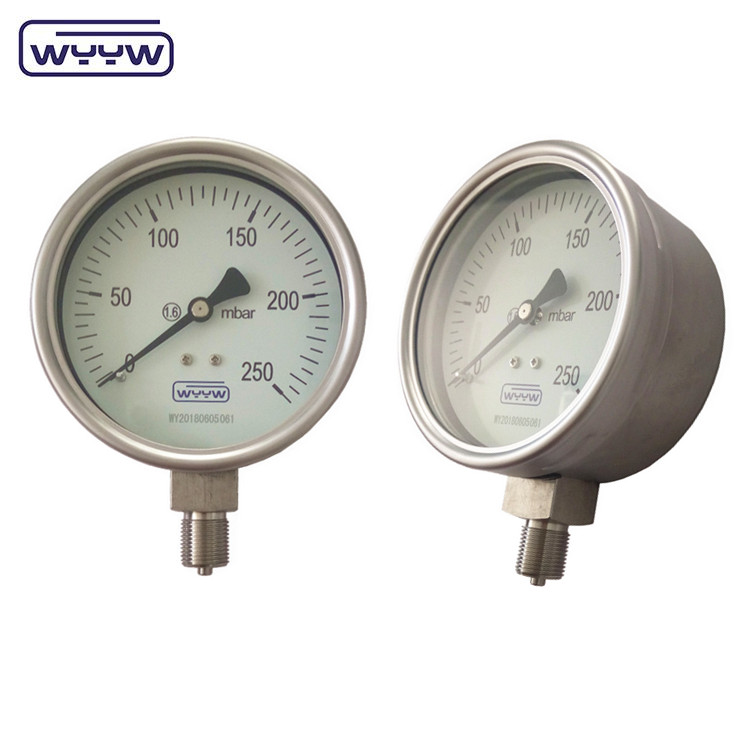

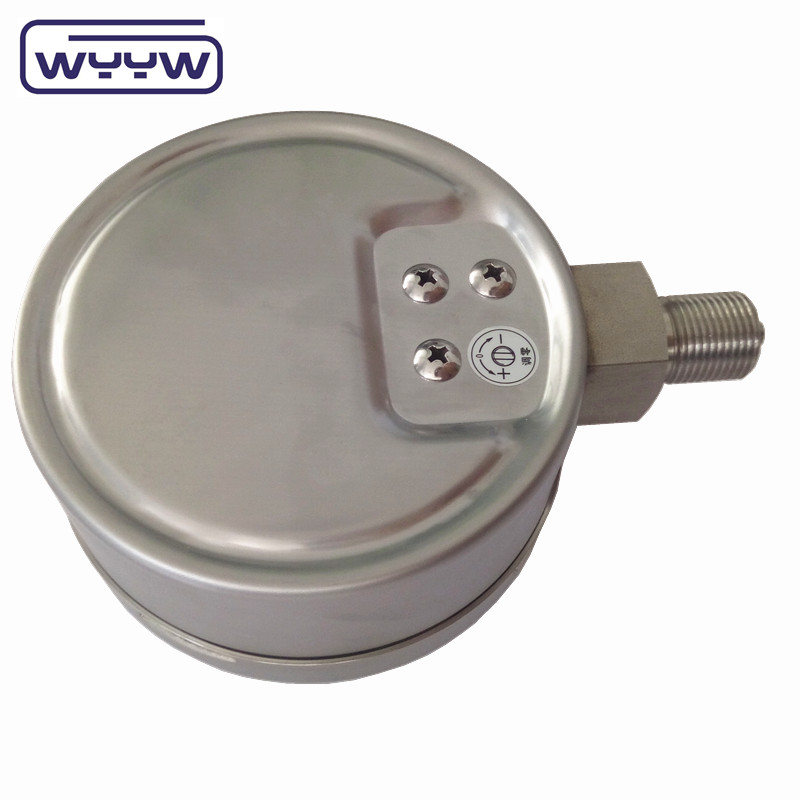

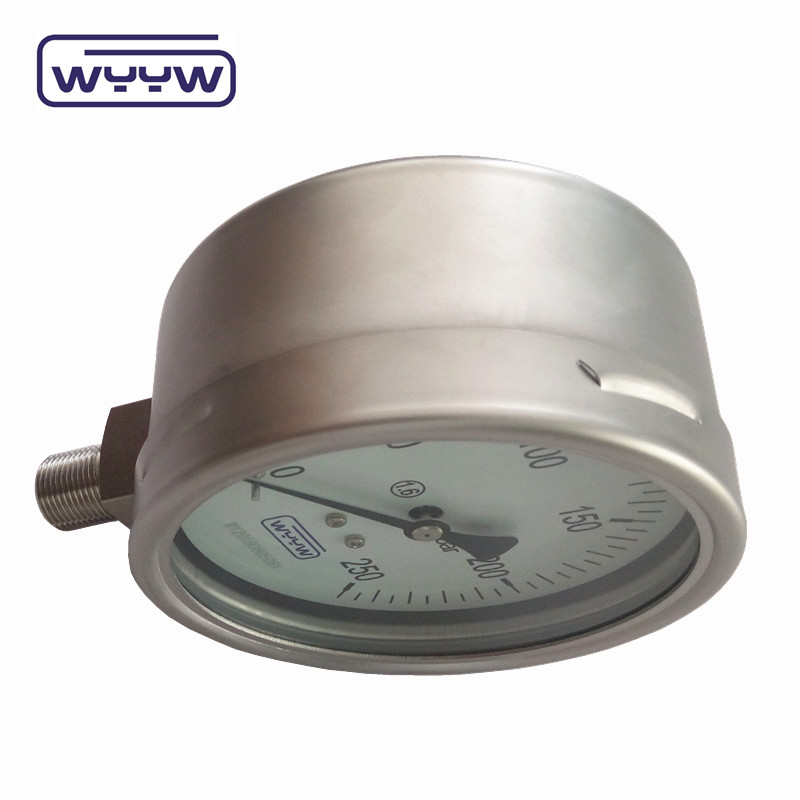

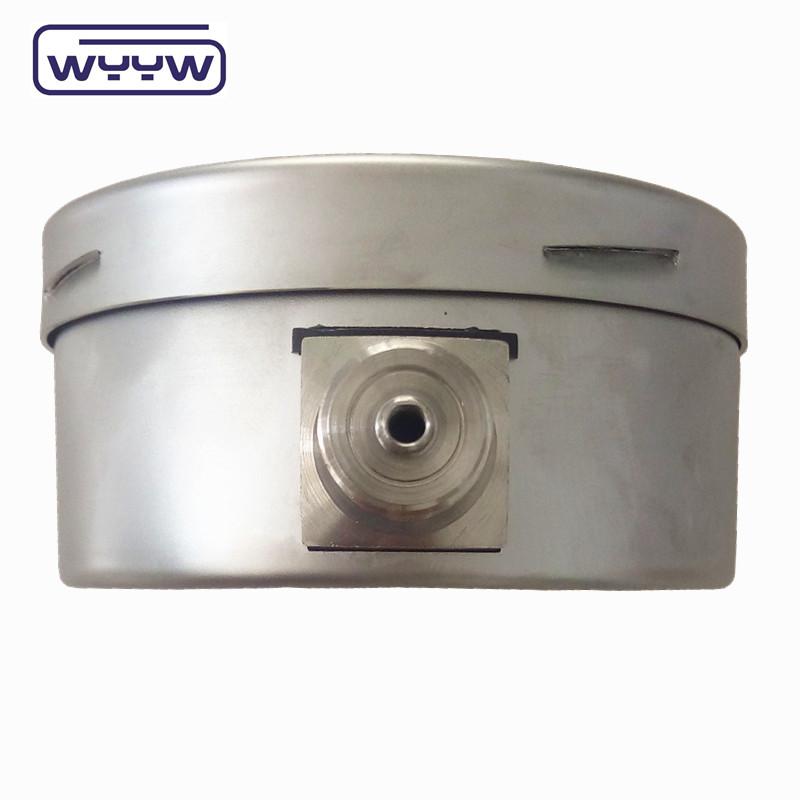

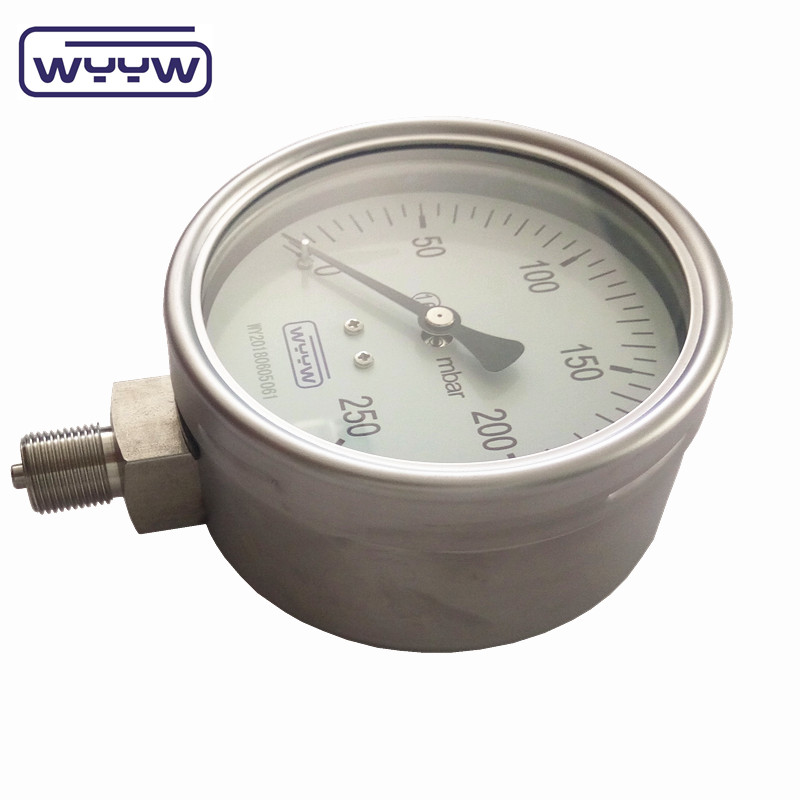

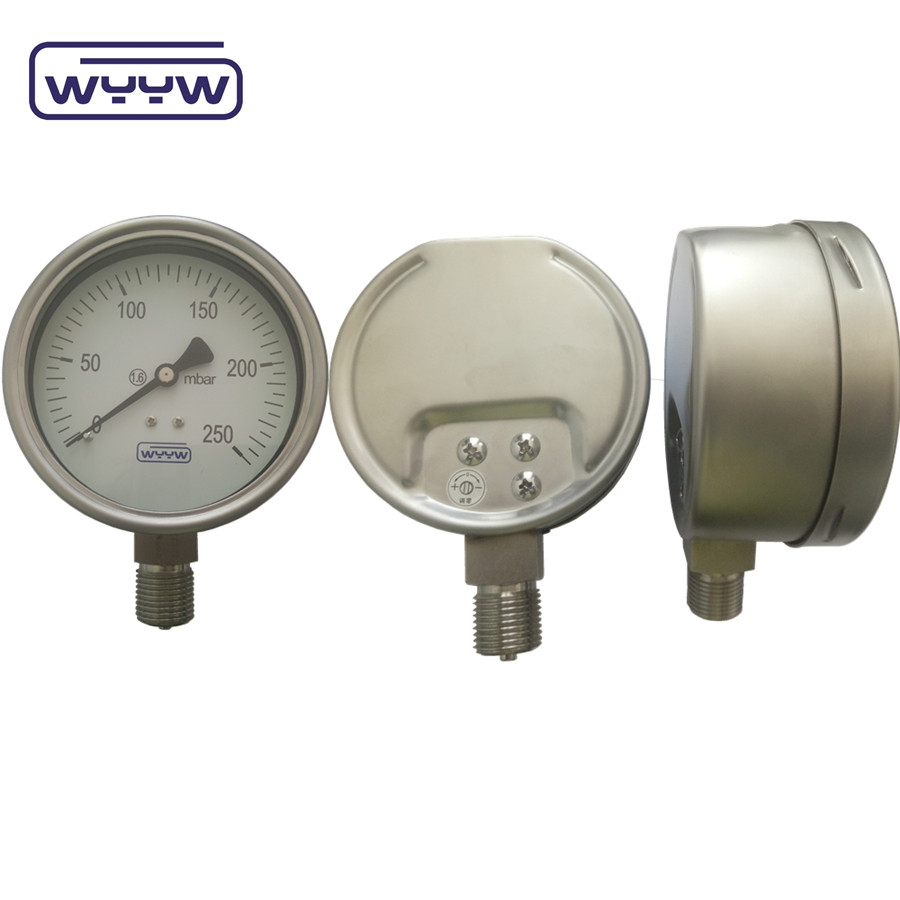

250 mbar 100mm SS Bellows pressure gauge

		Capsule Pressure Gauge
Main Technique Data
膜盒压力表	Dials Size	2.5(63mm), 4(100mm) and 6 (150mm)
	Case	Black steel or SS
	Pressure range	0-1.6, 2.5, 4, 6, 10, 16, 25, 40, 60kPa, mbar avaiable
	Ring	Non, roll and bayonet type
	Movement	Brass, SS
	Socket	Brass, SS
	Bellows	Phosphor Bronze, SS
	Dial plate and pointer	Aluminum
	Window	Glass, Safe Glass
	Connection sizes	1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
	Connection threads	Metric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
	Liquid	dry, silicone or glycerine filled
	Mounting	Bottom,back
	Accuracy	2.5(63mm)-2.5% 4(100mm) and 6 (150mm)-1.6%
	Pressure limitation	Steady: 3/4x full scale value Fluctuation:2/3x full sacle value Short time:full scale value
