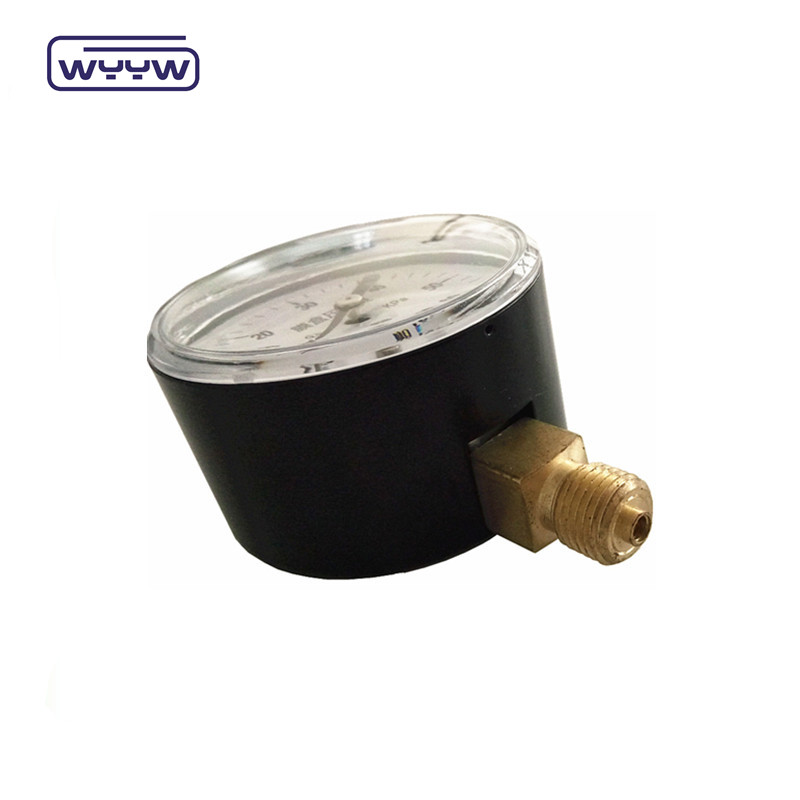

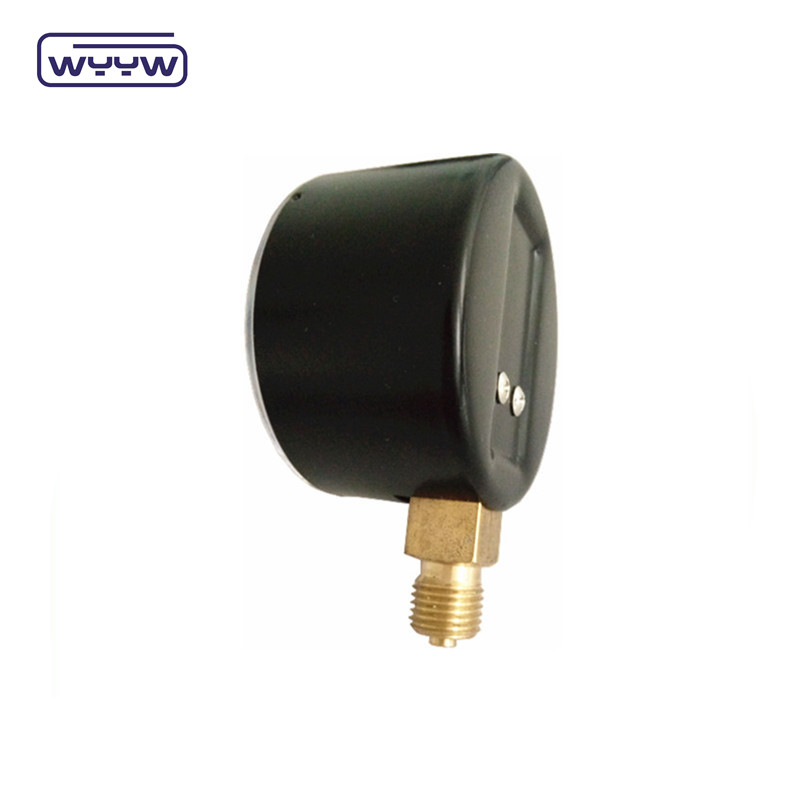

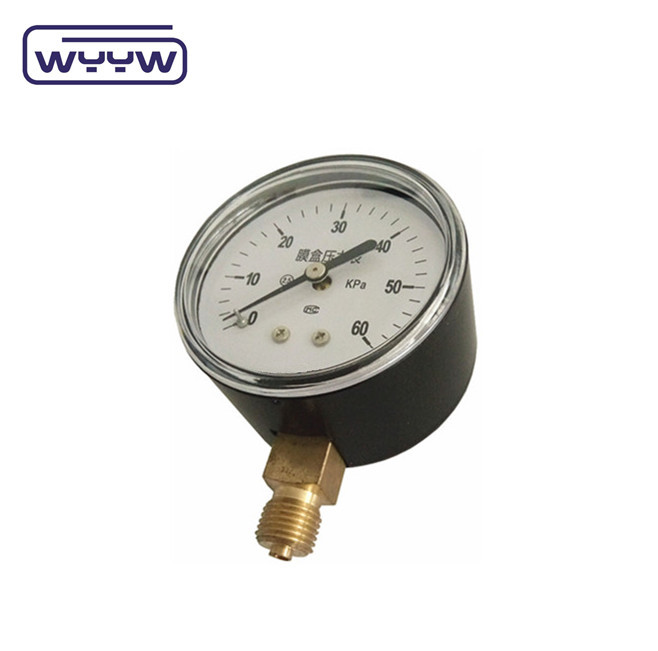

60kpa Bottom Capsule pressure gauge



 Capsule Pressure Gauge
Main Technique
Data


膜盒压力表Dials Size2.5(63mm), 4(100mm) and 6 (150mm)
Case Black steel or SS
Pressure range0-1.6, 2.5, 4, 6, 10, 16, 25, 40, 60kPa, mbar avaiable
RingNon,  roll and bayonet type
MovementBrass, SS
SocketBrass, SS
BellowsPhosphor Bronze, SS
Dial plate and pointerAluminum
WindowGlass, Safe Glass
Connection sizes1/8 for 1.5" case; 1/4 for 2",2.5" case, 3/8"&1/2" for 4",6"case
Connection threadsMetric Thread, NPT, BSP (G, PF), BSPT (ZG, PT)
Liquiddry, silicone or glycerine filled
MountingBottom,back
Accuracy2.5(63mm)-2.5%
4(100mm) and 6 (150mm)-1.6%
Pressure limitationSteady: 3/4x full scale value
Fluctuation:2/3x full sacle value
Short time:full scale value
